PCB Fabrication Services

✔Standard, Advanced, HDI, Multilayer PCBs, Flexible, Rigid-Flex boards,
Aluminium PCBs, prototypes to small batches.
✔Rigorous testing, and we are fully compliant with IPC standards.
✔24 hours non-stop tech support and production

Inquiry Now

Our Advantage

We use a wide range of PCB material options, such as FR4, High TG FR4, Rogers PCB, Metal-based PCB, and High-frequency Materials
We leverage advanced testing technologies, such as AOI Test, E-Test, X-RAY, and Impedance Control.
We have an in-house PCB design and assembly process review, which ensures high-quality products.
We have a superior customer care department, which supports person-to-person services.

Our PCB Fabrication Capabilities

Materials:FR4, High TG FR4, Halogen Free Material, CEM-3, Rogers HF Material
Min.Contour Tolerance:+/ -0.1mm
Layer Counts:2-30 Layers
Min.Finished Diameter of PTH Hole:0.5-5 OZ
Finished Copper Thickness:0.5-5 OZ
Max.Board Thickness/Hole Ratio:12:1
Finished Board Thickness:0.2-6.0mm
Min.Line/Track Width:3mil
Min.Solder Mask Bridge:4mil (Min,SMT Pad Space 8mil)
Min.Legend(Silkscreen) Track Width:5mil
MIN.Drilling Slot Size:0.6mm
Surface Treatment:Leaded HASL, Lead Free HASL, Immersion Gold, OSP, Immersion tin, Immersion Silver, etc
Solder Mask Color:Green, Black, Blue, White, Yellow, and Matt, etc
Solder Mask Hardness:6H
Legend/Silkscreen Color:Black, White, Yellow, and others.
Wrap and Twist:≤0.7%
Flammability:94v-0
Other Technology:Gold Finger,Peelable Mask, Non-across Blindried Vias, Characteristic Impedance Control, Riged-flex Board etc.

Our Products Show

Single Layer PCB
Double Layers PCB

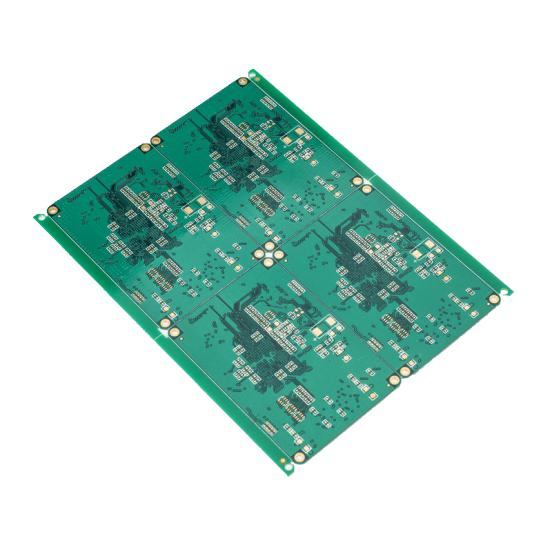

Multi-Layers PCB

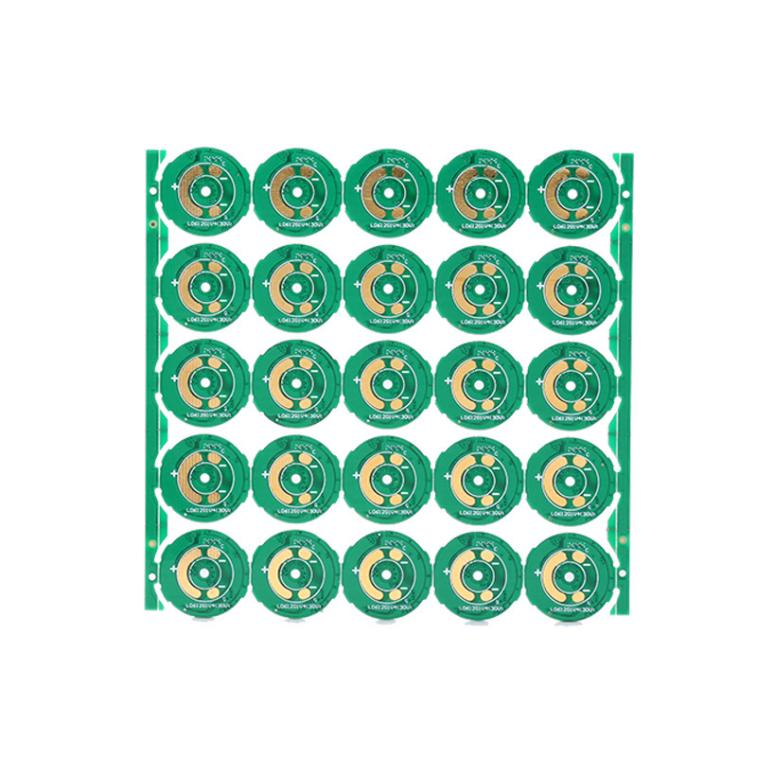

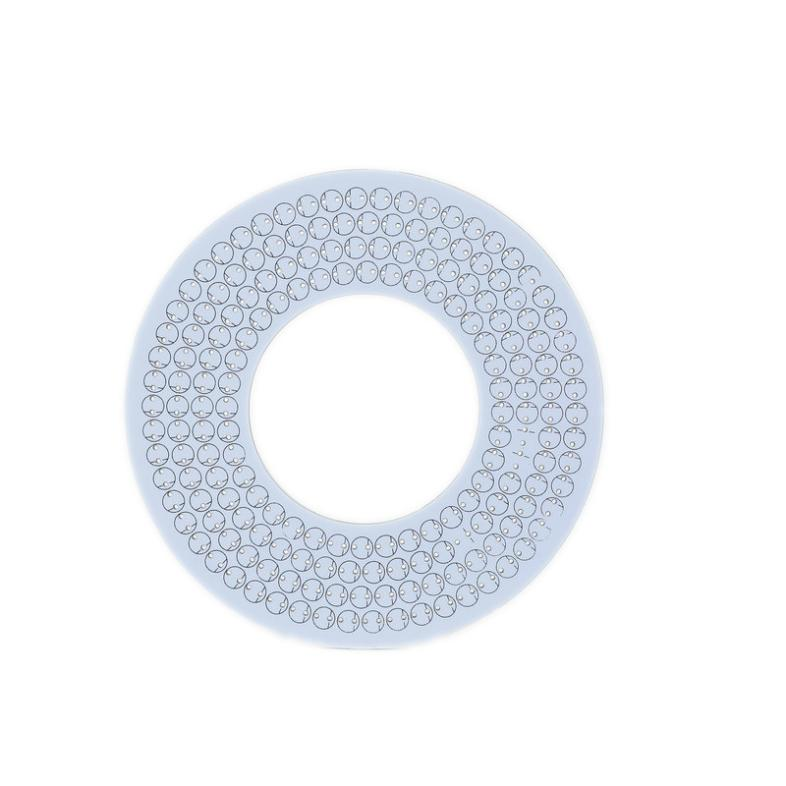

LED PCB

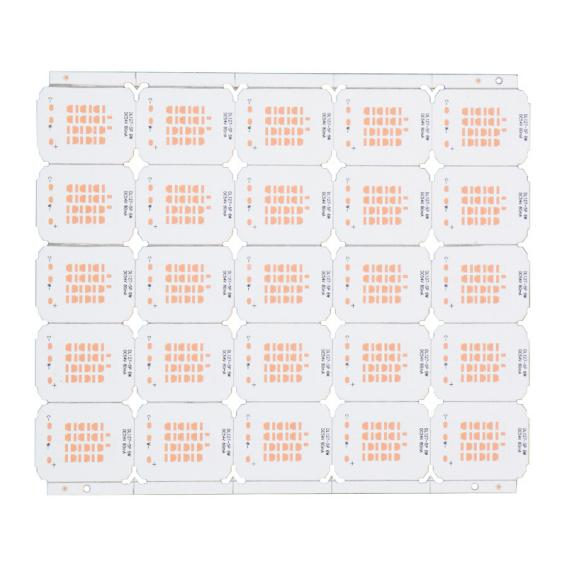

Aluminum PCB

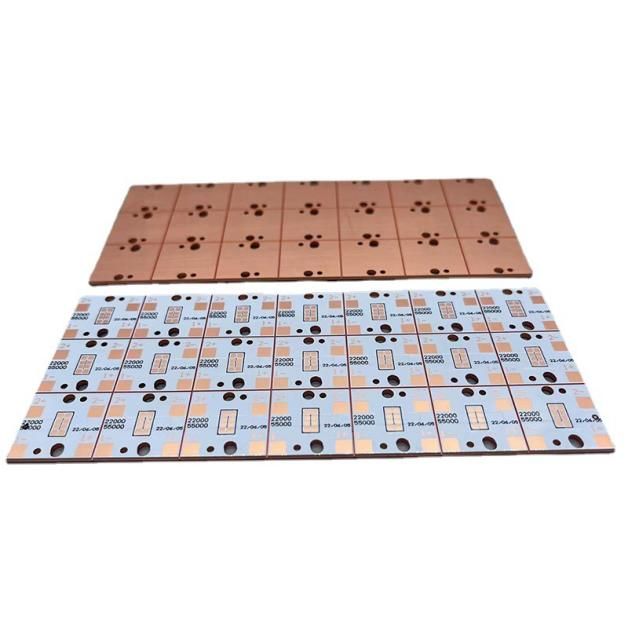

Copper PCB
High-Frequency PCB

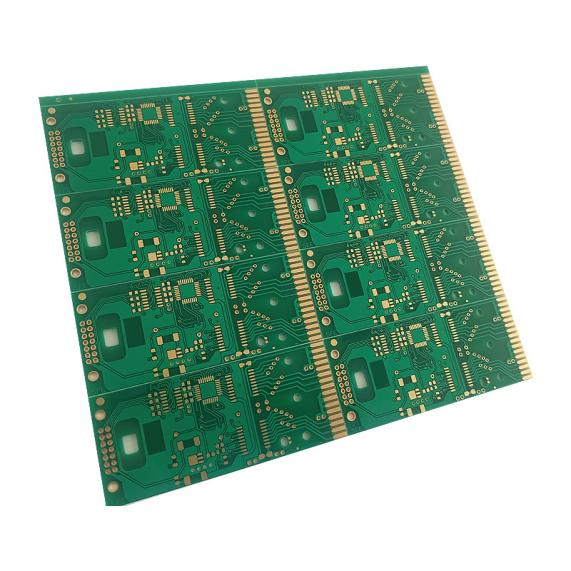

Gold Finger PCB

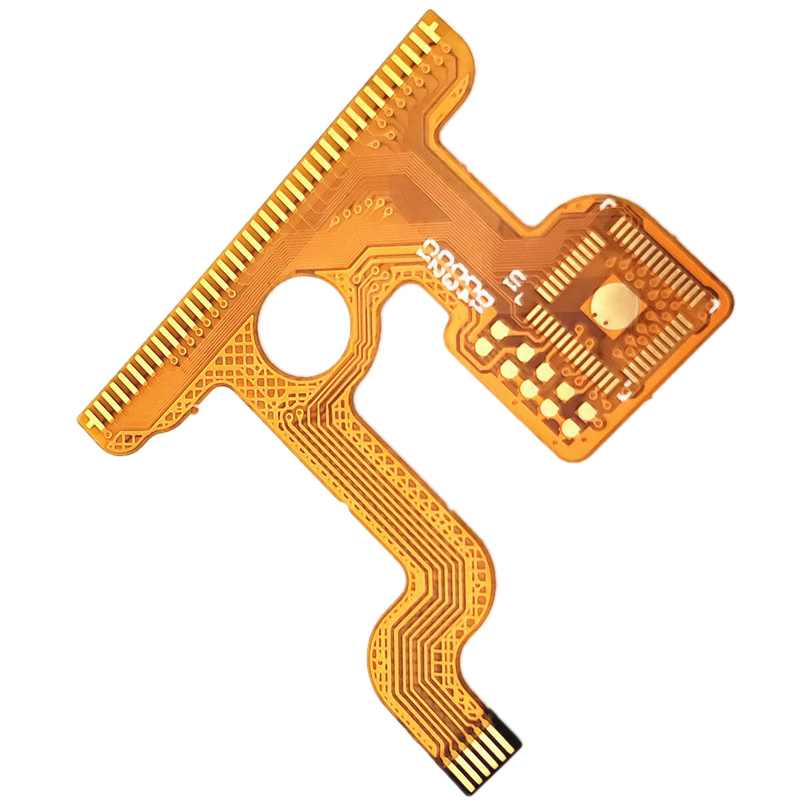

Flexible PCB

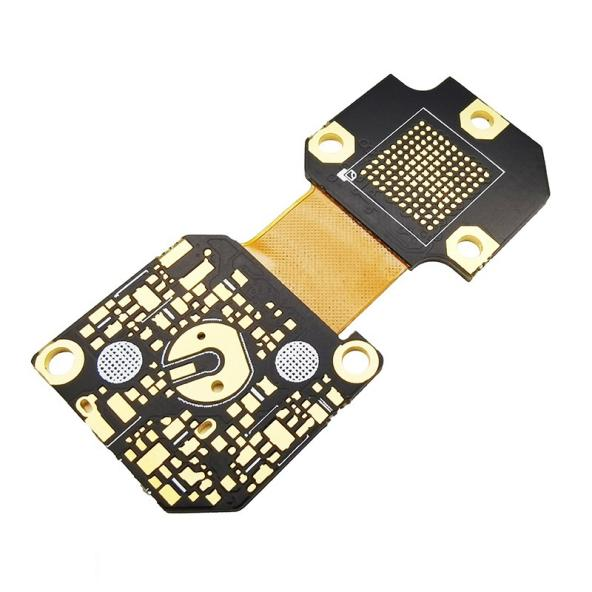

Rigid-Flex PCB

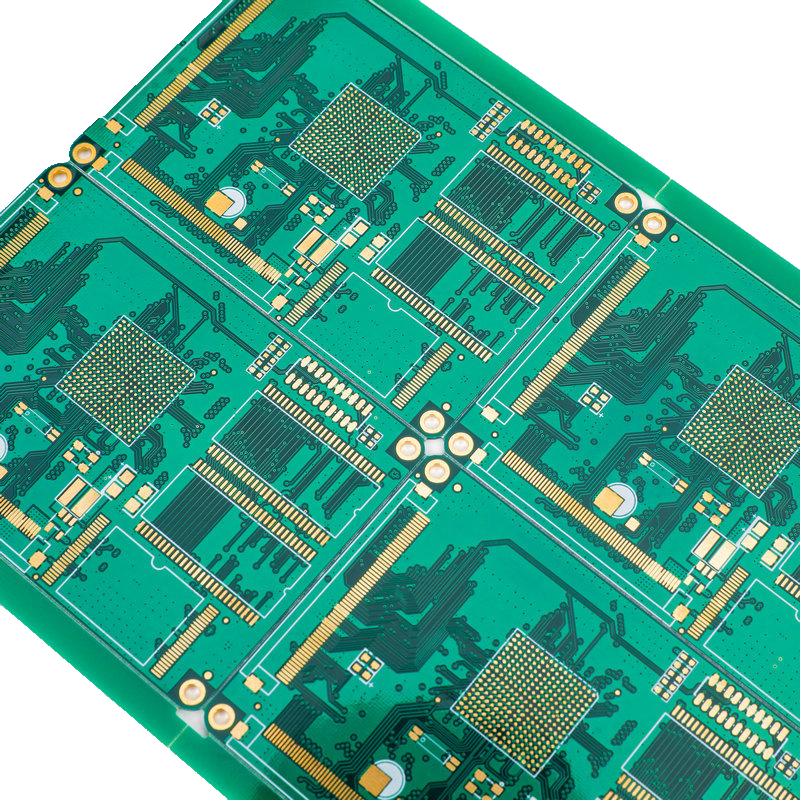

HDI PCB
Red Mask PCB

Our Certification

Below is the certificates we have
ISO 9001:2015 ISO14001:2015 ISO13485:2016 UL ,Also all our products follow the IPC & ROHS Standards.

Circuit Board Fabrication and PCB Assembly Services

NO MOQ Required;Quick-Turn;Affordable
